YAGEO PA Chip Resistors
YAGEO PA Chip Resistors are AEC-Q200-compliant surface-mount chip resistors featuring halogen-free epoxy and high component/equipment reliability. These resistors are constructed using TCR-level material with lead-free terminations made by metal substrate. YAGEO PA Chip Resistors are ideally suited for current sensing applications in battery charger circuits and DC-DC converters.
Features
- Complies with AEC-Q200 standards
- Halogen-free epoxy
- RoHS compliant
- Reduce environmentally hazardous wastes
- High component and equipment reliability
- Non-forbidden materials used in products/production
- Low resistances applied to current sensing
Applications
- Consumer goods
- Computer
- Telecom/datacom
- Industrial/power supplies
- Alternative energy
- Car electronics

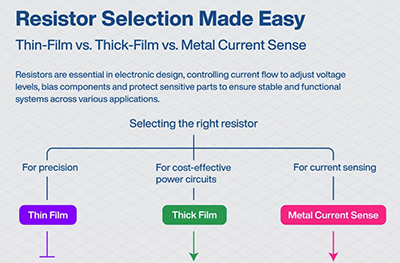

Infographic
Related Products
KEMET 5G Automotive Products from YAGEO Group
Ideal for next-level automotive applications, including autonomous driving, V2V, V2I, V2N, & V2P.
View Results ( 52 ) Page
| Part Number | Datasheet | Resistance | Description |
|---|---|---|---|
| PA2512FKE7T0R04E |  |
40 mOhms | Current Sense Resistors - SMD 40 mOhms 3 Watts 1 % 75 ppm/C AEC-Q200 |
| PA1206FRE470R015L | |
15 mOhms | Current Sense Resistors - SMD 15 mOhms 1 Watts 1 % 100 ppm/C AEC-Q200 |
| PA0805DRE7W0R02L | |
20 mOhms | Current Sense Resistors - SMD 20 mOhms 250mWat 1 % 100 ppm/C AEC-Q200 |
| PA2512FKF7T0R008E | |
8 mOhms | Current Sense Resistors - SMD 8 mOhms 3 Watts 1 % 50 ppm/C AEC-Q200 |
| PA0805FRL470R01Z | |
10 mOhms | Current Sense Resistors - SMD |
| PA1206FRM670R002L | |
2 mOhms | Current Sense Resistors - SMD 2 mOhms 100 ppm/C 1% AEC-Q200 |
| PA2512DKM7W0R015E | |
15 mOhms | Current Sense Resistors - SMD |
| PA2512DKM7W0R025E | |
25 mOhms | Current Sense Resistors - SMD |
| PA2512FKD7W0R005E | |
5 mOhms | Current Sense Resistors - SMD |
| PA2512FKD7W0R007E | |
7 mOhms | Current Sense Resistors - SMD |
Published: 2015-04-22
| Updated: 2025-11-07
