Pulse Electronics Small Form Factor Common Mode Chokes

Pulse Electronics Small Form Factor Common Mode Chokes are used for reducing high-frequency conducted noise. These Pulse common mode chokes operate at up to 9A rated current and 80VDC maximum rated voltage between windings. The small form factor common mode chokes have a maximum 7.5mm x 6.5mm footprint and 3.8mm maximum height.

Features

  • 3.8mm (maximum) height
  • A wide range of current/impedance offerings
  • 7.5mm x 6.5mm (maximum) footprint
  • Up to 9A rated current
  • Excellent high-frequency impedance characteristics
  • 80VDC rated voltage (maximum) between windings

Specifications

  • 1.8µH to 9µH inductance
  • 10mΩ to 21mΩ maximum DC resistance
  • 77MHz to 200MHz self-resonant frequency

Mechanical and Schematic Drawings

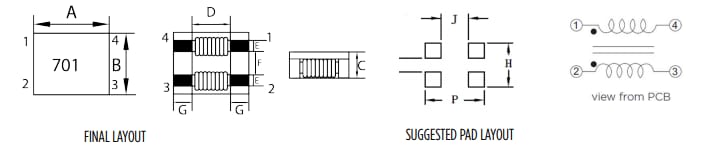

Mechanical Drawing - Pulse Electronics Small Form Factor Common Mode Chokes
