Nexperia DSN0603 Medium Power Schottky Diodes
Nexperia DSN0603 Packaged Medium Power Schottky Diodes are optimized for low forward voltage. These devices offer a forward current of 0.2A or 0.5A and a reverse voltage of 20V, 30V, or 40V. The ultra-small, low-profile surface-mount DSN0603 package makes these Medium Power Schottky Diodes ideal for space-constrained applications.
Features
- Ultra-small plastic SMD DSN0603 package
- Low diode capacitance(<1pF)
- Very low diode capacitance
- Low forward voltage
- Very low forward voltage
- Single and triple-isolated diode
- Single, double, and triple configurations available
- Ultra-high switching speed
Applications
- Reverse polarity protection
- Power management, especially DC-to-DC conversion
- General application switching
- Low-voltage rectification
Related Products
Nexperia PMEG Schottky Rectifiers
Planar MEGA devices with an integrated guard ring for stress protection, compact SMD packages.
Nexperia Automotive DFN Diodes & Transistors
Designed with side-wettable flanks for small and light automotive diodes and transistors.
Nexperia PMEG60Tx Trench Schottky Barrier Rectifiers
Feature 60V Maximum Efficiency General Application (MEGA) rectifiers in a CFP package.

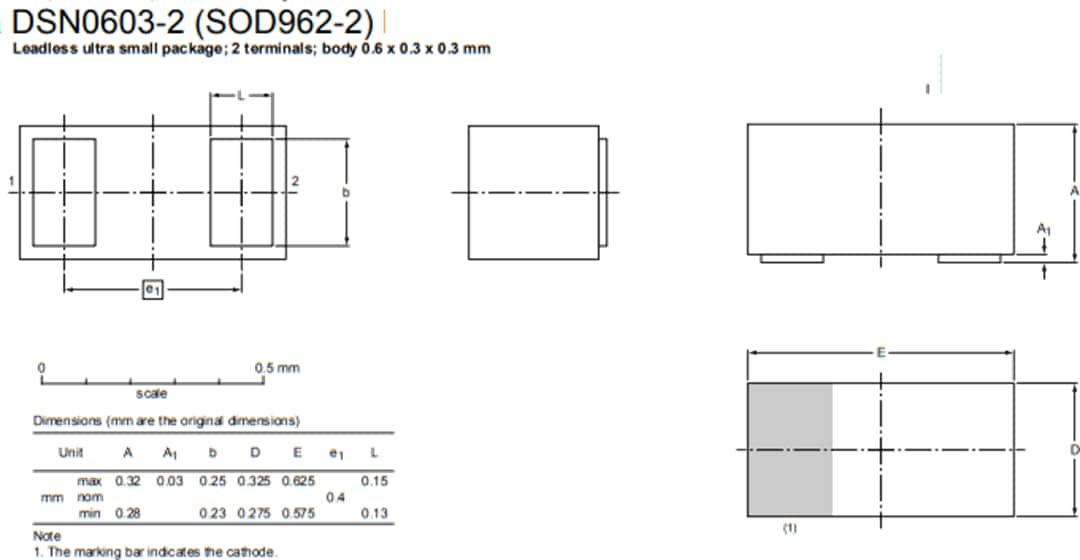

Package Outline
