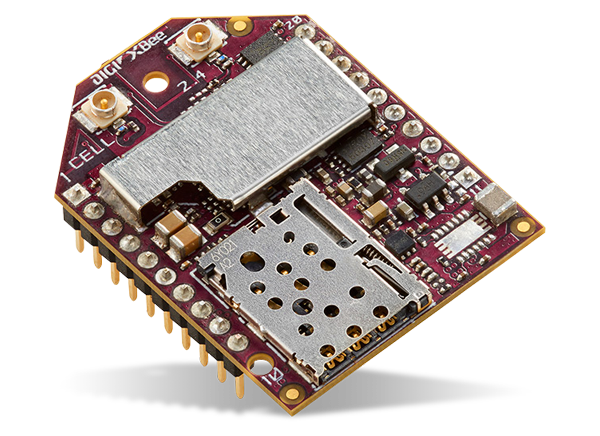

Digi XBee™ Cellular LTE-M Embedded Modem
Digi XBee™ Cellular LTE-M / NB-IoT Ready Embedded Modems are integrated Modules designed to provide OEMs with a simple way to integrate low-power cellular connectivity into devices. The Digi XBee Cellular LTE-M is a low-cost, Low Power Wide Area (LPWA) embedded cellular modem. These Embedded Modem Modules are FCC and carrier end-device certified, eliminating the cost, complexity, and risk involved in the certification process. The XBee Cellular LTE-M Embedded Modem is also Narrowband IoT (NB-IoT) Ready with a future over-the-air update.
The Digi XBee Embedded Modem Modules are programmable, with support for custom MicroPython applications running directly onboard, so no external microcontroller is required in certain use-cases. These Modules are part of a complete ecosystem of wireless modules, gateways, adapters, and software, allowing developers to drop them into existing designs to instantly achieve cellular integration, without doing a complete re-design.
Features
- FCC-certified
- Carrier end-device certified
- Excellent coverage and building penetration
- Digi XBee Transparent and API modes simplify designs
- Low power consumption optimized for long battery life
- Reduced hardware complexity
- Only 1 U.FL antenna required
- Integrated MicroPython programmability enables custom scripting directly on the modem
- Manage and configure with XCTU and Digi Remote Manager®
- Digi Trustfence™ security with Secure Boot, Encrypted Storage, Protected JTAG
- NB-IoT ready with a future over-the-air update
Specifications
- 200mW (23dBm) transmit power
- 3.0V to 4.3V supply voltage
- Verizon and AT&T carriers
- LTE-M and bands 13/4 wireless frequency
- Up to 384kbps RF throughput
- Up to 1Mbps downlink or uplink speed
- u-blox 404M/R410M chipset reference
- AT Commands, API Frames, and local or OTA configuration methods
- UART and SPI serial data interface
- Transparent, API, and Bypass operating methods
- MicroPython with 8KB Flash or 24KB RAM programmability
- 4 ADC lines (10-bit) analog I/O
- 15 DIO lines digital I/O
- Digi XBee 20-pin through-hole form factor
- 24.38mm x 32.94mm dimensions
- -40°C to +80°C operating temperature
