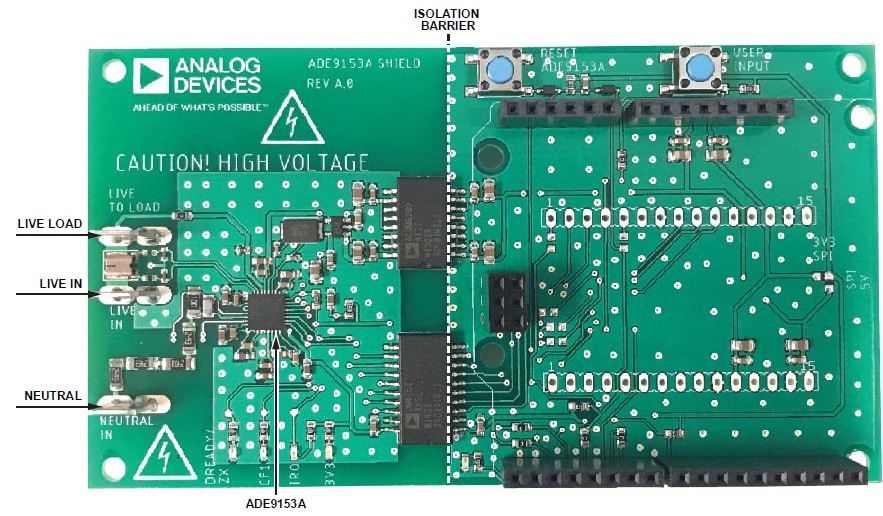

Analog Devices EV-ADE9153ASHIELDZ is a single-phase energy measurement shield compatible with Arduino Uno, Arduino Zero, and ESP8266. EV-ADE9153ASHIELDZ features the ADE9153A IC and an onboard shunt resistor for line current measurement. The shield enables quick evaluation and prototyping of energy measurement systems that use the ADE9153A Energy Metering ICs with mSure® autocalibration. Using mSure autocalibration, the designer can calibrate the shield to measure energy with 1% accuracy over the dynamic range. To simplify the implementation of larger systems, Arduino library and application examples are included.
Features
Arduino-compatible, single-phase energy measurement shield with the ADE9153A
On-board shunt for line current measurement
5A nominal current
10A maximum current
Up to 240Vrms nominal line-neutral voltage measurement
Arduino software library
mSure autocalibration and example application sketches
