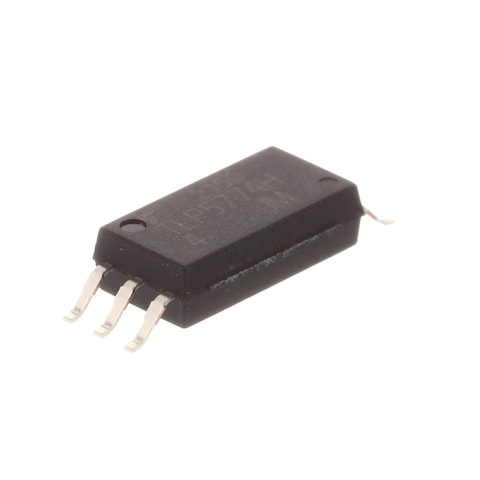

TLP5774H(D4TP4,E

Name: Toshiba TLP5774H(D4TP4,E
Brand: Toshiba
SKU: 757-TLP5774HD4TP4E
Price: 1.87 GBP
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

757-TLP5774HD4TP4E

Mfr. No:

TLP5774H(D4TP4,E

Mfr.:

Toshiba

Description:

Optically Isolated Gate Drivers Gate Drive Coupler; 4A; wider lead; High Temp; RoHS; VDE

Datasheet:

TLP5774H(D4TP4,E Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Toshiba TLP5774H(D4TP4,E

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: Request Delivery Quote

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1500)

Cut Tape

MouseReel™ (+£3.50)

Pricing (GBP)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	£1.87	£1.87
	£1.36	£13.60
	£1.05	£105.00
	£0.918	£459.00
	£0.826	£826.00
Full Reel (Order in multiples of 1500)
	£0.775	£1,162.50
	£0.76	£2,280.00

† A MouseReel™ fee of £3.50 will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Toshiba
Product Category:	Optically Isolated Gate Drivers
RoHS:
Mounting Style:	SMD/SMT
Number of Channels:	1 Channel
Vf - Forward Voltage:	1.65 V
Vr - Reverse Voltage:	5 V
If - Forward Current:	8 mA
Isolation Voltage:	5000 Vrms
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Pd - Power Dissipation:	20 mW
Rise Time:	56 ns
Fall Time:	25 ns
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Toshiba
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	JP
Product Type:	Optically Isolated Gate Drivers
Factory Pack Quantity:	1500
Subcategory:	Optocouplers

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

TLP5774H(D4TP4,E Datasheet (PDF)

USHTS:: 8541498000
TARIC:: 8541490000
ECCN:: EAR99

TLP577x GaAlAs Infrared LED & Photo ICs

Toshiba TLP577x Series GaAlAs Infrared LED and Photo ICs consist of a GaAlAs infrared light-emitting diode and an integrated high-gain, high-speed photodetector. The ICs are housed in 6-pin SO6L packages which are 50% smaller than the 8-pin DIP package. These packages meet the reinforced insulation class requirements of international safety standards so the mounting area can be reduced in equipment requiring the safety standard certification.

TLP5774H(D4TP4,E

Mfr.: Toshiba

Description: Optically Isolated Gate Drivers Gate Drive Coupler; 4A; wider lead; High Temp; RoHS; VDE
