281739-5

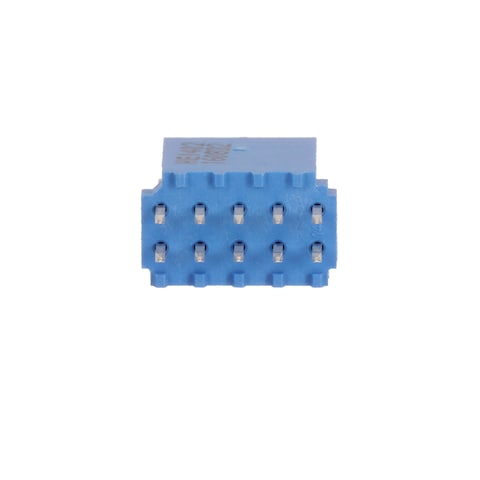

Name: TE Connectivity 281739-5
Brand: TE Connectivity
SKU: 571-281739-5
Price: 1.77 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-281739-5

Mfr. No:

281739-5

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings HEADER VERT 2X05 POS HE14

Datasheet:

281739-5 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 1,368

Stock:: 1,368 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£1.77	£1.77
	£1.54	£15.40
	£1.47	£147.00
	£1.33	£332.50
	£1.22	£610.00
	£1.17	£1,170.00
	£1.05	£2,100.00
	£1.01	£4,040.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	10 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	HE13 / HE14
Tradename:	AMPMODU
Application:	Wire-to-Board
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 100 C
Packaging:	Bulk
Brand:	TE Connectivity
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Colour:	Blue
Housing Material:	Polybutylene Terephthalate (PBT)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	2000
Subcategory:	Headers & Wire Housings
Unit Weight:	1 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

281739-5 Datasheet (PDF)

Images

Models

281739-5 Symbol & Footprint by SnapMagic

RoHS Certificate (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

AMPMODU Interconnection System

TE Connectivity's (TE) AMPMODU Interconnection System provides connections with a unique modular concept, utilizing precision-formed receptacle contacts and mating posts. Mating of the post and receptacle contacts of this system is very tolerant. This is made possible by a post with a burr-free lead-in and a receptacle contact featuring double cantilever beams and anti-overstress stops.
