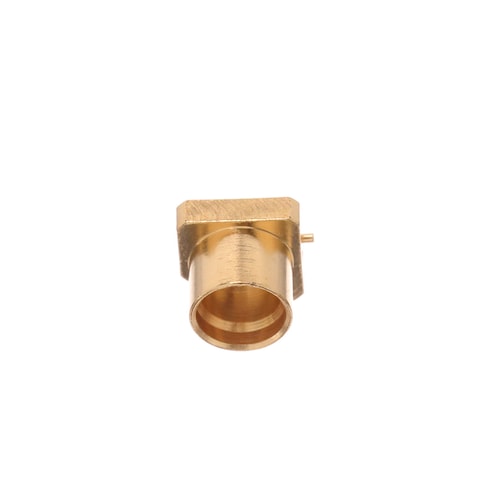

Name: Radiall R222941700W
Brand: Radiall
SKU: 501-R222941700W
Price: 11.3 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

501-R222941700W

Mfr. No:

R222941700W

Mfr.:

Radiall

Description:

RF Connectors / Coaxial Connectors SMP/STRG MALE RECP SMT SMOOTH BORE

Datasheet:

R222941700W Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Radiall R222941700W

In Stock: 48

Stock:: 48 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£11.30	£11.30
	£10.01	£100.10
	£9.63	£240.75
	£9.25	£462.50
	£8.73	£873.00
	£7.97	£1,992.50
2,500	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Radiall
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
REACH - SVHC:
Product:	PCB Receptacles
RF Series:	RP-SMP
Gender:	Jack (Pin)
Impedance:	50 Ohms
Maximum Frequency:	12.4 GHz
Termination Style:	Solder
Orientation:	Straight
Polarity:	Reverse
Mounting Style:	SMD/SMT
Packaging:	Bulk
Body Finish:	Nickel Phosphorous Gold Radiall
Body Material:	Brass
Body Style:	Straight
Brand:	Radiall
Contact Material:	Brass
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Insulation Resistance:	5 GOhms
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	R222
Factory Pack Quantity:	1
Subcategory:	RF Interconnects
Voltage Rating:	335 V
Unit Weight:	624 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

R222941700W Datasheet (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99
