0903025

Name: Phoenix Contact 0903025
Brand: Phoenix Contact
SKU: 651-0903025
Price: 75.82 GBP
Availability: InStock

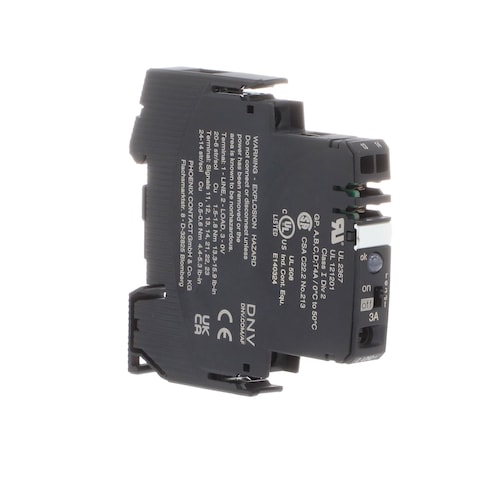

Images are for reference only
See Product Specifications

Mouser No:

651-0903025

Mfr. No:

0903025

Mfr.:

Phoenix Contact

Description:

Circuit Breakers EC-E1 3A 3 A, N/O SIGNAL CNT

Datasheet:

0903025 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Phoenix Contact 0903025

In Stock: 2

Stock:: 2 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

This Product Ships FREE

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£75.82	£75.82

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Phoenix Contact
Product Category:	Circuit Breakers
RoHS:
REACH - SVHC:
Series:	EC-E
Product:	Circuit Breaker
Type:	Electronic
Current Rating:	3 A
Voltage Rating DC:	24 VDC
Number of Poles:	1 Pole
Actuator Type:	Slide
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 50 C
Illuminated:	Non-Illuminated
Packaging:	Bulk
Brand:	Phoenix Contact
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Height:	83 mm
Length:	83 mm
Mounting Style:	DIN Rail Mount
Factory Pack Quantity:	1
Subcategory:	Circuit Breakers
Termination Style:	Screw
Voltage Rating:	24 V
Width:	12.5 mm
Part # Aliases:	EC-E1_3A ECE13A
Unit Weight:	65.800 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

0903025 Datasheet (PDF)

Specification Sheets

Conflict Material Declaration (Spreadsheet)

CNHTS:: 8536100000
CAHTS:: 8536200010
USHTS:: 8536200020
JPHTS:: 8536200002
KRHTS:: 8536200000
TARIC:: 8536201090
BRHTS:: 85362000
ECCN:: EAR99

EC-E Electronic Miniature Circuit Breakers

Phoenix Contact EC-E Electronic Miniature Circuit Breakers selectively protects all 24V_DC load circuits on power supply units. They are designed for active electronic current limiting in short-circuit conditions as well as overload shutdown. The response time is faster than a power supply, preventing power dips or loss to associated circuits. The circuit breakers have built-in status indication through a multi-colored LED and N/O or N/C signal contacts for remote signaling. Phoenix Contact EC-E Electronic Miniature Circuit Breakers are ideal for use in both hazardous and non-hazardous environments.

Control Cabinet Solutions

Phoenix Contact Control Cabinet Solutions offer flexibility, innovation, and cost-effective products for applications. Ranging from power supplies and DIN-rail terminal blocks to relays, circuit breakers, lighting, and more, Phoenix Contact offers a single-source solution for all control cabinet needs. Control cabinet solutions are designed to the required standards and directives, enabling the finished products to meet the highest requirements.
