ACJC5H BULK

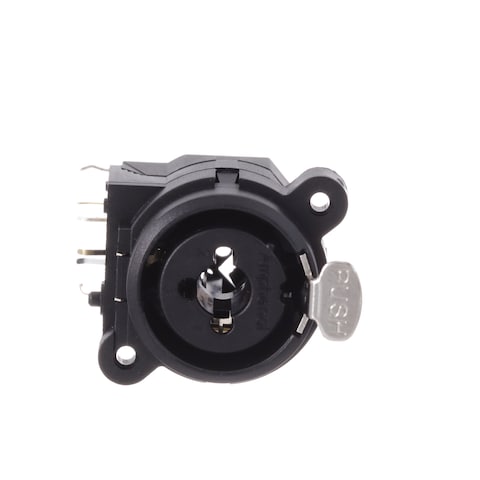

Name: Amphenol ACJC5H BULK
Brand: Amphenol Audio
SKU: 523-ACJC5HBULK
Price: 2.82 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-ACJC5HBULK

Mfr. No:

ACJC5H BULK

Mfr.:

Amphenol Audio

Description:

XLR Connectors 1/4" XLR Dual ChassisMount CType Mono HorizPCB Latch Non-switchXLR Ground Black

Datasheet:

ACJC5H BULK Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Audio ACJC5H BULK

In Stock: 57

Stock:: 57 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 57 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£2.82	£2.82
	£2.64	£26.40
	£2.23	£223.00
	£1.70	£850.00
	£1.52	£1,520.00
	£1.46	£3,650.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	XLR Connectors
RoHS:
Product:	Receptacles
Standard:	Standard XLR
Number of Positions:	5 Position
Gender:	Female
Termination Style:	Solder Pin
Mounting Style:	PCB Mount
Contact Plating:	Gold
Orientation:	Right Angle
Series:	XLR, AC DUAL - 1/4"
Brand:	Amphenol Audio
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Mating Cycles:	1500 Cycle
Product Type:	XLR Connectors
Factory Pack Quantity:	100
Subcategory:	Audio & Video Connectors
Voltage Rating:	50 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ACJC5H BULK Datasheet (PDF)

Product Catalogs

Product Catalogs (PDF)

CNHTS:: 8536901100
CAHTS:: 8536900020
USHTS:: 8536694040
JPHTS:: 853690000
KRHTS:: 8536909010
TARIC:: 8536693000
MXHTS:: 85369099
BRHTS:: 85369090
ECCN:: EAR99

Low-Profile XLR 1/4" Combo Jacks

Amphenol Audio Low-Profile XLR 1/4" Combo Jacks feature a space-saving design that offers a 15% mounting pitch reduction and a lower height than traditional C-type combo connectors. These jacks combine two connectors into a single connector housing with a positive latch lock system (XLR). Amphenol Audio Low-Profile XLR 1/4" Combo Jacks are available in 3, 6, 9, or 10 pole versions with vertical or horizontal PCB mounting configurations.
